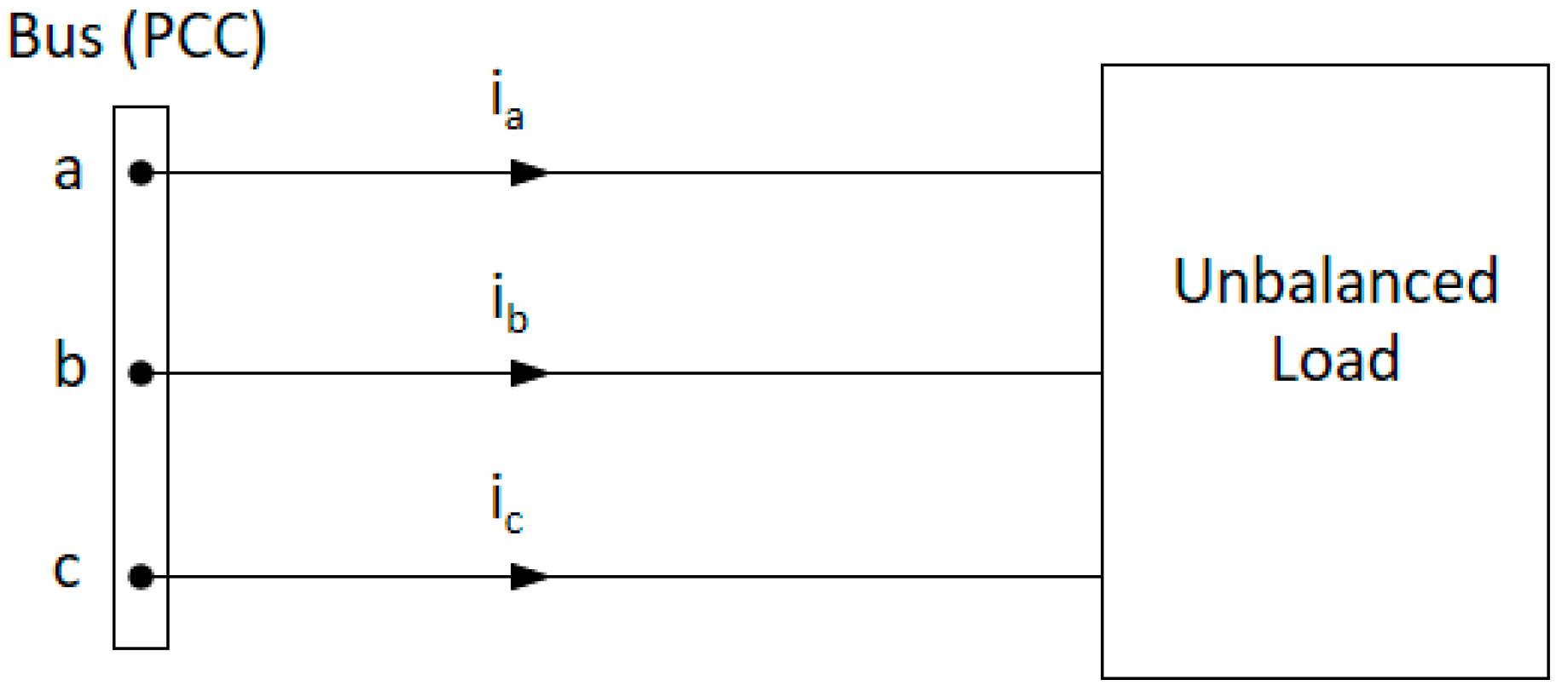

Applied Sciences Free FullText Compensation Of Reactive Power And

Unraveling the Mystery

1. It's Not Just Sitting There Doing Nothing!

Ever wondered why electricians and engineers talk about wire being "reactive"? It's not like your copper cable is suddenly going to start arguing with you, but it does have a personality when it comes to alternating current (AC). Think of it less like a grumpy teenager and more like a sleeping dragon it has potential energy just waiting to be unleashed, or in this case, electrical characteristics ready to influence the flow of electricity.

The term "reactive" in this context refers to how a wire (or any electrical component, really) responds to changes in voltage and current. It stems from the fact that wires aren't perfectly resistive. They also exhibit inductance and capacitance, even if it's on a small scale. These seemingly insignificant properties become crucial when dealing with AC circuits, because AC is constantly changing direction and magnitude.

Imagine pushing a swing. If you push at the right time, the swing goes higher and higher. That's resonance. Similarly, in AC circuits, the inductance and capacitance of a wire can "resonate" with the changing voltage, causing the current to either lag behind or lead the voltage. This phase difference between voltage and current is what we mean when we say a wire is "reactive."

So, it's not about the wire having opinions; it's about how it interacts with fluctuating electrical signals due to its inherent physical properties. A wire's reactivity is determined by a combination of its resistance, inductance, and capacitance. The interplay of these properties explains why a wire might react to signals being sent across it.

Reactivity Series Periodic Table

Inductance

2. It's Not a Spring, But It Acts Like One

Okay, let's delve deeper into inductance. A wire, particularly if it's coiled, creates a magnetic field when current flows through it. This magnetic field stores energy. When the current changes (as it does in AC), the magnetic field changes too. This changing magnetic field, in turn, induces a voltage in the wire that opposes the change in current. It's like the wire is resisting being told what to do!

This opposition to the changing current is what we call inductance. A highly inductive wire will resist changes in current flow more strongly than a wire with low inductance. Think of it like pushing a heavy box versus a light one. The heavier box (higher inductance) requires more effort to get moving (changing the current).

The unit of inductance is the Henry (H), named after Joseph Henry, an American scientist who independently discovered electromagnetic induction (along with Michael Faraday). The inductance of a wire depends on its physical characteristics, such as its length, diameter, and the material it's made of. Coiling the wire drastically increases its inductance because it concentrates the magnetic field.

So, while a straight piece of wire still possesses a bit of inductance, coiling greatly amplifies this effect. This is precisely why inductors exist as components of their own. These specialized coils or toroids are specifically designed to add inductance to a circuit to perform different functions. Inductors are crucial in various applications, including energy storage in power supplies, filtering unwanted frequencies from circuits, and creating tuned circuits in radios.

Black And White Wires Which Is Positive? (Explained) PortablePowerGuides

Capacitance

3. It's Like a Tiny, Tiny Battery

Now, let's talk about capacitance. Even a straight wire has a tiny bit of capacitance. Capacitance is the ability to store electrical energy in an electric field. Imagine two wires running parallel to each other. They act like the plates of a capacitor, with the air or insulation between them acting as the dielectric. This creates a small amount of capacitance between the two wires.

When voltage is applied to the wires, an electric field forms between them, storing electrical energy. The higher the voltage, the more energy is stored. When the voltage changes (again, important in AC), the capacitor charges and discharges, affecting the current flow. A capacitive wire will allow current to lead the voltage.

The unit of capacitance is the Farad (F), named after Michael Faraday. The capacitance of a wire depends on the distance between the conductors, their surface area, and the dielectric material separating them. Typically, the capacitance of a wire is very small, often measured in picofarads (pF).

While a single, isolated wire has extremely low capacitance, it's still there! And in certain high-frequency applications, even these tiny amounts of capacitance can play a significant role in circuit behavior. The tiny capacitor between two wires will either absorb or supply charge. It is a key player when the voltage across the wire changes. This tiny action could modify the signals or overall effect.

Why Regular Pest Services Are Key To A PestFree Home Brooks

Resistance

4. Even Perfect Wires Aren't Perfect

We can't forget resistance. Even the best conductors have some resistance to the flow of current. Resistance is the opposition to the flow of electric current, and it converts electrical energy into heat. It's like friction in a mechanical system. It resists motion. Therefore, its resistance will always affect the wire's electrical activity.

A wire with high resistance will dissipate more energy as heat than a wire with low resistance. This is why power cords can get warm when you plug in high-power appliances. The heat is a result of the current flowing through the resistance of the wire. This is the simplest property of wires and is usually what people consider when choosing an appropriate wire gauge.

The unit of resistance is the Ohm (), named after Georg Ohm. The resistance of a wire depends on its material, length, and cross-sectional area. Longer and thinner wires have higher resistance than shorter and thicker wires. Also, materials like copper and silver have lower resistance than materials like iron or steel.

While resistance alone doesn't make a wire "reactive," it's a critical component of the overall impedance (the total opposition to current flow) of the wire. The combination of resistance, inductance, and capacitance determines how the wire behaves in AC circuits. So, even a wire designed for low resistance will still contribute to the overall reactive behavior of the system.

Learning

Putting It All Together

5. The Whole is Greater Than the Sum of Its Parts

So, we have resistance, inductance, and capacitance all playing their parts in the wire's behavior. The combined effect of these three properties is called impedance, represented by the symbol Z. Impedance is the total opposition to current flow in an AC circuit, taking into account both resistance and reactance.

Reactance (X) is the opposition to current flow due to inductance and capacitance. Inductive reactance (XL) increases with frequency, while capacitive reactance (XC) decreases with frequency. The overall reactance of a wire depends on the frequency of the AC signal. At certain frequencies, the inductive and capacitive reactances can cancel each other out, resulting in a purely resistive impedance. This is the basic principle for building resonant circuits.

Understanding impedance and reactance is crucial for designing and analyzing AC circuits. Mismatched impedances can lead to signal reflections, power loss, and other undesirable effects. This is why impedance matching is so important in applications like radio frequency (RF) circuits and transmission lines.

Therefore, "Why is wire reactive?" becomes a question of understanding how those tiny amounts of inductance and capacitance come into play alongside the fundamental property of resistance. Once all three are added together, the electrical effect creates impedance. Depending on the signal, there might be different consequences. As such, understanding this phenomenon allows for better circuit design, proper wire selection, and even prediction of signal behaviour.

What Is Reactive Power? The Use Of

FAQ

6. Your Burning Questions Answered!

Q: Does a DC circuit need to consider wire reactivity?

A: Generally, no. In DC circuits, the current is constant, so the inductive and capacitive effects of the wire are negligible. Resistance is the primary factor to consider in DC circuits.

Q: Can wire reactivity be completely eliminated?

A: Not entirely. Even a perfectly straight wire will have some inherent inductance and capacitance. However, you can minimize reactivity by using shorter wires, keeping them away from other conductors, and using special types of cables designed for high-frequency applications.

Q: How does wire gauge affect reactivity?

A: Wire gauge primarily affects resistance. A thicker wire (lower gauge number) has lower resistance. However, it can also slightly affect inductance and capacitance due to changes in surface area and spacing. In short, the thicker the wire, the less the reactivity will be.
