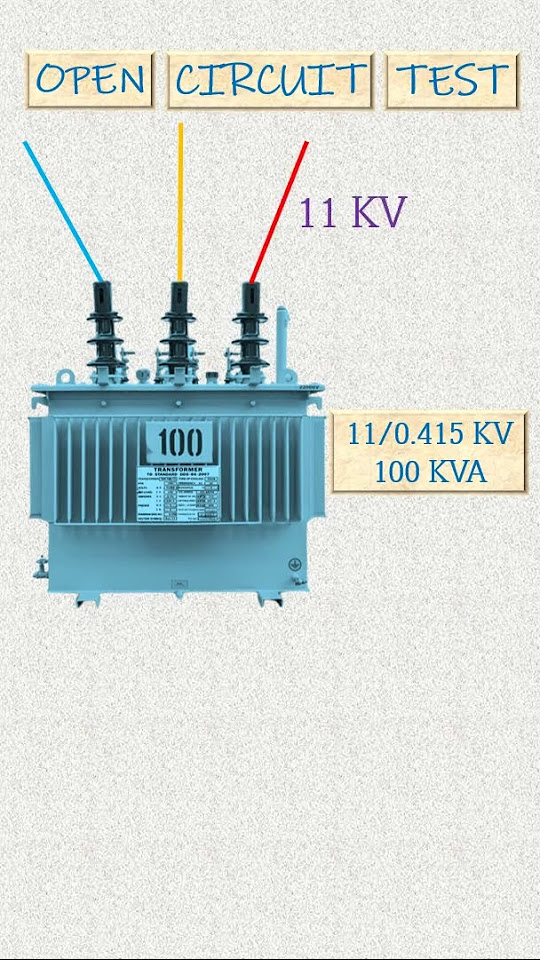

Open Circuit Test Of Transformer Why Is Performed

Decoding the Mystery

1. Understanding Open Circuit Voltage

Ever fiddled with a circuit, measured the voltage, and thought, "Whoa, that's way higher than I expected!"? You're not alone! High open circuit voltage (Voc) can be a bit perplexing, especially if you're just getting your feet wet in the world of electronics. But don't worry; we're about to unravel this mystery together. It's not rocket science, although a basic understanding of electrical components is always a plus.

Essentially, open circuit voltage refers to the voltage present at the terminals of a power source (like a battery or solar panel) when no load is connected. Imagine it like this: It's the potential energy waiting to be unleashed, like a coiled spring ready to snap. The higher the voltage, the greater the potential to push electrons around a circuit. But why is it sometimes so surprisingly high? That's what we're going to explore.

Think of it like a dam holding back water. The height of the water behind the dam represents the voltage. With no turbines spinning (no load connected), all that potential energy is just sitting there, waiting to be used. The open circuit voltage is the measurement of that "height" or potential.

Now, before we delve deeper, its important to differentiate Voc from the voltage you'd measure when the circuit is actually doing something. When you connect a load — say, a lightbulb — the voltage will typically drop because the power source is now working to provide current. But that initial, unloaded voltage is what we are focusing on.

Find The Opencircuit Voltage Ratio Of Following Twoport Network

The Usual Suspects

2. Unveiling the Culprits

Several factors can contribute to a higher-than-expected open circuit voltage. Think of it like a detective novel; we need to identify the "usual suspects" to solve the case. First up: temperature. Temperature is a huge influencer, especially in solar panels. Generally, as the temperature of a solar panel increases, its open-circuit voltage decreases. This is because higher temperatures cause more electron excitation, which allows them to move more freely and reduces the voltage needed to drive them.

Another key suspect is the intensity of the incident energy, like sunlight shining on a solar panel. The brighter the light, the more energy is available to generate voltage. This is pretty straightforward: more sunlight, more excited electrons, and thus, a higher voltage potential. You'll notice this effect easily on a sunny day compared to a cloudy one. A cloudy day will lead to lower intensity and therefore will result a lower voltage.

The characteristics of the power source itself also play a crucial role. For example, the type of semiconductor material used in a solar panel (like silicon or perovskite) directly affects its voltage output. Similarly, the internal chemistry and design of a battery determine its voltage level. Every power source has its own inherent properties that dictate its Voc.

Lastly, don't overlook the measuring instrument! A faulty multimeter or incorrect measurement technique can give you a misleading reading. Always double-check your equipment and ensure you're using it correctly. It is also a good idea to double-check your wiring. Sometimes a loose wire may contribute to an inflated or fluctuating voltage, even with no apparent load connected.

Open Circuit Test Of Transformer Why Is Performed

The Case of Solar Panels

3. High Voc in Solar Arrays

Solar panels deserve their own section because they are a common source of high Voc situations. Imagine a sunny day: the sun is beating down on your solar array, exciting the electrons in the silicon cells. These excited electrons jump across the band gap of the semiconductor, creating a potential difference — voltage! The brighter the sun, the more electrons jump, and the higher the voltage climbs.

Now, stringing multiple solar panels together in series increases the overall voltage. This is how solar arrays are designed to produce the higher voltages needed for inverters. But here's the catch: the Voc of each panel adds up. So, if you have a string of panels, each with a Voc of, say, 45 volts, the total Voc of the string could be quite significant. And this is perfectly normal as long as it aligns with the specifications of the panels.

However, problems can arise if the Voc exceeds the maximum voltage rating of your inverter or other connected equipment. This can lead to damage and system failure. That's why proper system design and voltage calculations are essential. It's like making sure your plumbing can handle the water pressure; you don't want a burst pipe!

Another aspect to consider is temperature. As mentioned earlier, Voc decreases with increasing temperature, but this effect might not always be immediately obvious. The panel specifications will provide guidance on how temperature affects the Voc. It's important to remember that solar panel specifications are often given at standard test conditions (STC), which are ideal conditions that rarely reflect real-world scenarios.

Battery Open Circuit Voltage Testing And Application TYCORUN

Safety First! Handling High Voltages

4. Precautions and Best Practices

Working with high voltages can be risky business. It's like handling a loaded weapon; you need to know what you're doing and take the necessary precautions. Always, always disconnect the power source before working on any circuit. Sounds obvious, right? But it's amazing how many people skip this step and end up regretting it. Even with seemingly "safe" voltages, the current can still be dangerous.

Use insulated tools specifically designed for electrical work. Don't try to MacGyver it with your regular pliers and screwdrivers. Insulated tools provide a crucial layer of protection against accidental shocks. Think of them as your safety net. Additionally, wear appropriate personal protective equipment (PPE) like insulated gloves and safety glasses. Eye protection is particularly important, especially if you're working with batteries that could potentially leak or explode.

If you're unsure about anything, consult a qualified electrician. Electricity is not something to be trifled with. Don't be afraid to ask for help. A professional can provide guidance and ensure that the work is done safely and correctly. It is always better to be safe than sorry. You can also watch videos online or take training to learn more about electrical safety. Always check your information to make sure it is valid and legitimate.

Finally, be aware of your surroundings. Make sure the work area is dry and well-lit. Avoid working in damp or wet conditions, as water is an excellent conductor of electricity. Keep children and pets away from the work area. Basically, create a safe and controlled environment before you even think about touching a wire.

For The Op Amp Circuit In Fig. Calculate Output Voltage Vo

Troubleshooting High Voc

5. Diagnosing the Issue

So, you've measured a high open circuit voltage. Now what? Let's put on our detective hats again and start troubleshooting. First, double-check your measurement. Use a reliable multimeter and ensure it's properly calibrated. Try measuring the voltage with a different multimeter to rule out any equipment errors.

Next, examine the power source itself. Is it the correct type and voltage rating for your application? Are there any signs of damage or corrosion? For batteries, check the electrolyte level and look for any bulging or leaks. For solar panels, inspect the surface for cracks or delamination. The physical state of the power source can give clues as to where to look for problems.

If you're working with a solar array, check the individual panels and connections. Use a thermal camera to identify any hotspots, which could indicate a faulty panel or connection. Make sure all connections are tight and secure. Loose connections can cause voltage fluctuations and potentially lead to higher Voc readings. If any components appear damaged, then it is most likely time to replace them.

Finally, consider the environmental conditions. Is the temperature exceptionally high? Is the sunlight unusually intense? These factors can influence the Voc, as we discussed earlier. If the high Voc is within acceptable limits, based on the manufacturer's specifications, then it might be nothing to worry about. However, if the Voc is significantly higher than expected, even considering environmental factors, then further investigation is warranted.

Node Voltage Method Example 12 (Trick Useful Technique When Solving

FAQ

6. Frequently Asked Questions

Alright, let's tackle some common questions about high open circuit voltage.

Q: Is a high Voc always a bad thing?
A: Not necessarily. A high Voc simply indicates the potential voltage available from a power source when no load is connected. It only becomes a problem if it exceeds the maximum voltage rating of connected equipment.

Q: Can a high Voc damage my equipment?
A: Yes, if the Voc exceeds the equipment's voltage rating, it can cause damage, potentially leading to failure. Always check the specifications of your equipment and ensure that the Voc is within the acceptable range.

Q: How can I reduce a high Voc in a solar array?
A: You can't directly reduce the Voc of individual panels, but you can manage the overall system voltage by carefully planning the series and parallel connections of the panels. You can also use a charge controller with maximum power point tracking (MPPT) to optimize the voltage and current delivered to your batteries or other loads.

Q: What does open circuit voltage means?
A: Open Circuit Voltage (Voc) refers to the voltage present at the terminals of a power source (such as a battery or solar panel) when no load is connected. It's the maximum voltage the source can provide, representing the electrical potential difference without any current flowing.
