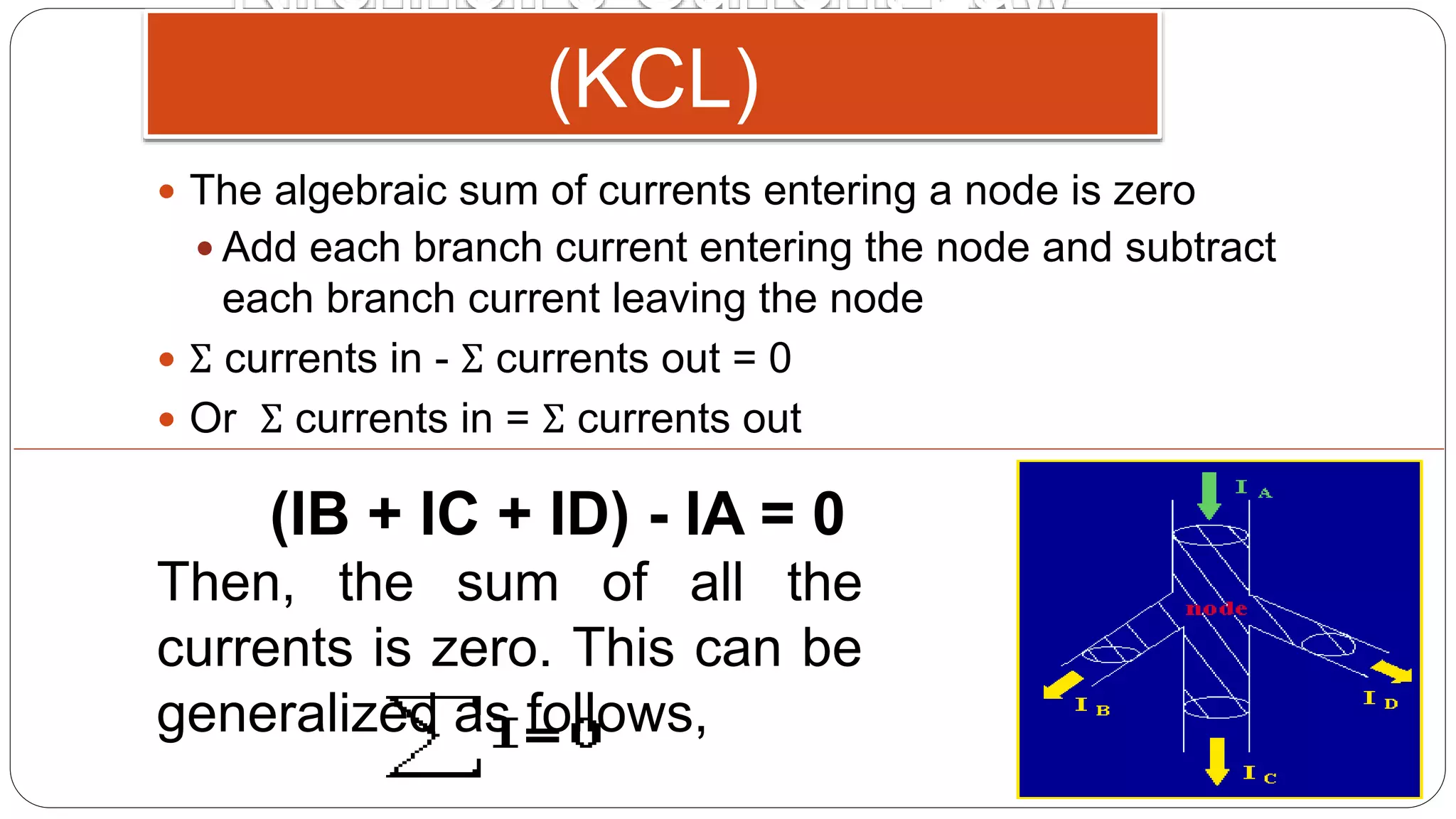

KCL And KVL

KCL vs. KVL

1. Understanding the Core Concepts

Alright, let's talk about Kirchhoff's Current Law (KCL) and Kirchhoff's Voltage Law (KVL). These two laws are like the bread and butter of circuit analysis. KVL basically says that the sum of voltage drops around any closed loop in a circuit is zero. Think of it like a roller coaster — what goes up must come down. KCL, on the other hand, states that the sum of currents entering a node (a junction point) is equal to the sum of currents leaving that node. It's all about conservation of charge; what flows in must flow out.

Now, both laws are fundamentally important, no doubt about it. They're the foundation upon which we build our understanding of how electrical circuits behave. But, when we start thinking about them from a high-level, abstract perspective, that's where the differences become more apparent. We need to move past just cranking through calculations and start considering the bigger picture.

Abstraction, in this context, means simplifying a complex system to its most essential components. It's about hiding unnecessary details so you can focus on the core principles. Imagine trying to build a house by understanding the atomic structure of every brick. That's way too much detail! Instead, you focus on bricks, mortar, and blueprints. That's abstraction in action. And, surprisingly, KCL lends itself to that kind of simplified understanding a bit better than KVL.

The key to understanding why KCL has a slight edge lies in its connection to fundamental conservation laws. Current, at its heart, is the flow of charge. Conservation of charge is a bedrock principle of physics. That direct link makes KCL feel intuitively sound and easily relatable to other physical phenomena. It's not just some arbitrary rule; it's tied to something much more fundamental.

KCL And KVL PPT

Why KCL is a More Convenient Abstraction

2. Current is King (or Queen!)

One reason KCL shines as an abstraction is because current is often the driving force in many circuit analyses. Think about it: we frequently design circuits to control current flow — whether it's to power an LED, drive a motor, or process a signal. Voltage is important, of course, but current is often what we are directly manipulating and observing. Because we're frequently observing current flow, KCL tends to be the more natural starting point.

Consider a simple parallel circuit. Analyzing it with KCL is straightforward: the total current entering the junction splits among the branches. Understanding how that current divides based on the resistance in each branch gives you a clear picture of how the circuit operates. You can then use Ohm's law (V=IR) to figure out the voltage drop if you need it.

Now, contrast that with analyzing the same circuit using KVL. While perfectly valid, you'd focus on the fact that the voltage drop across each branch is the same. That's true, but it might not be the most insightful way to approach the problem, especially if you're primarily concerned with current distribution. KVL is more focused on the relationships between voltage drops along a loop, which can be less intuitive than thinking about the flow of current at a node when youre designing for particular current levels.

Ultimately, it comes down to perspective. Both KCL and KVL will give you the same answers (assuming you apply them correctly!). The "better" abstraction depends on the specific problem and what you are trying to understand. But, the central role of current in many circuit applications often makes KCL the more convenient and intuitive choice.

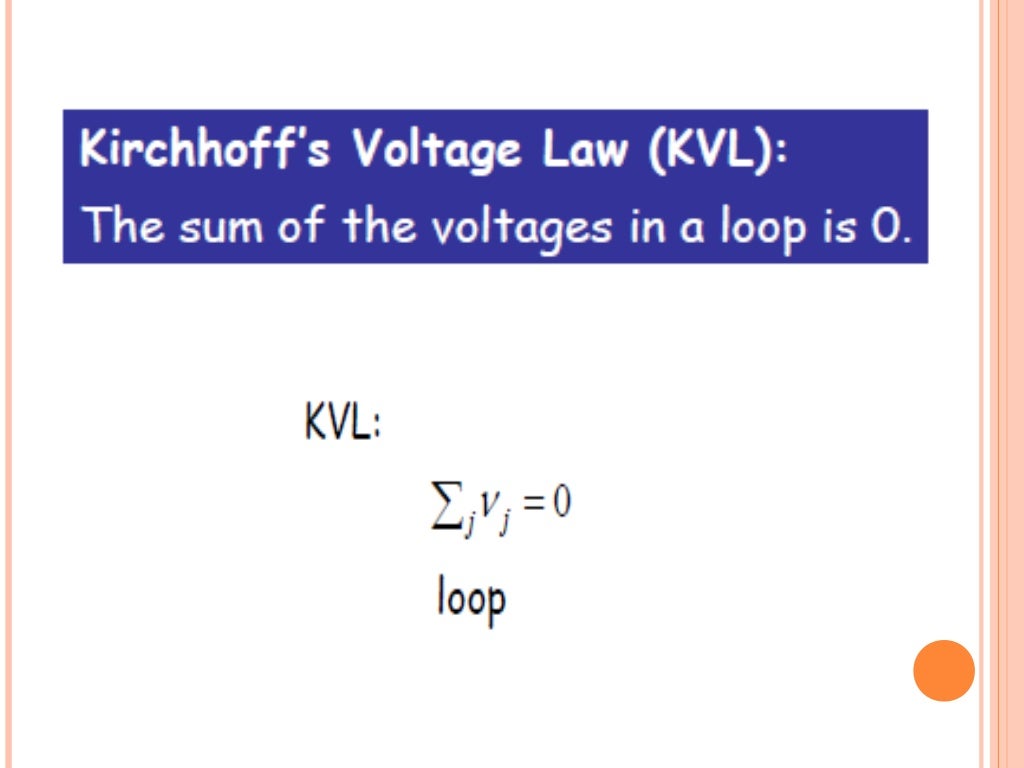

KVL And KCL

Network Topology and KCL's Advantage

3. Thinking About Nodes and Branches

The way we represent circuits also influences how easily we can apply KCL and KVL. Circuit diagrams are essentially graphical representations of electrical networks, consisting of nodes (junctions) and branches (paths between nodes). And KCL aligns more naturally with the concept of nodes. When we look at a circuit diagram, the nodes are the places where things connect and diverge. That's exactly where KCL comes into play.

KVL, on the other hand, is all about closed loops. While loops are certainly present in circuit diagrams, they're not always as visually obvious as the nodes. You sometimes have to mentally trace the paths to identify the loops. This can add a layer of complexity, especially in more complicated circuits. Consider complex mesh networks. Isolating appropriate loops can take more time compared to analysing the current flow into a particular node.

Furthermore, KCL is more naturally suited for nodal analysis, a common technique for solving circuits. Nodal analysis focuses on determining the node voltages, and KCL is the equation that relates these node voltages to the currents flowing in the circuit. It's a systematic approach that lends itself well to computer-aided circuit simulation (like SPICE, for example). Although, Mesh analysis, and it is still very useful. But the point is, KCL based analysis aligns neatly with standard methods of solving.

Think of a complex circuit board. You'll find countless components interconnected. Focusing on where wires converge and diverge is often more intuitive than tracing hypothetical loops, especially when troubleshooting or understanding signal flow. It's about mentally organizing the information in the most efficient way possible, and that's where KCL's node-centric viewpoint often has a real advantage in practical terms.

Simulation Of KCL And KVL YouTube

Symmetry and Duality

4. Exploring the Relationship Between KCL and KVL

Here's where things get a little bit more theoretical, but it's worth understanding: KCL and KVL are actually dual concepts. Duality, in circuit theory, means that you can transform one circuit into another by swapping voltages and currents, series and parallel connections, and so on. This duality highlights the fundamental symmetry in how electrical circuits operate.

However, even with this inherent duality, KCL often comes across as slightly more fundamental in terms of abstraction. In many modeling paradigms, current sources are often considered "ideal" in the sense that they force a specific current into a circuit, regardless of the voltage. Voltage sources, on the other hand, require a closed path to function. This difference can subtly influence how we think about the overall system.

Consider the concept of "ground" in a circuit. Ground is typically defined as the reference point for zero voltage. However, from a current perspective, ground is often the "sink" for all return currents. This focus on current as the primary driver in many designs reinforces the idea that KCL might be a more natural abstraction for understanding the bigger picture.

Ultimately, understanding duality is crucial for becoming a proficient circuit designer. But, the practical implications of KCL—its link to conservation laws, its alignment with nodal analysis, and its emphasis on current as a driving force—often make it the more intuitive starting point for grasping complex circuit behavior. That doesn't mean KVL is unimportant, far from it, but it emphasizes the subtle advantage KCL offers in terms of abstraction.

KCL And KVL Kirchhoff’s Current, Voltage Law

Practical Implications and When to Choose KCL

5. Real-World Scenarios

So, in the real world, where does KCL really shine? Consider designing power distribution networks. You need to ensure that each component receives the correct amount of current. KCL becomes your best friend for analyzing how current is distributed across various branches and ensuring that no node is overloaded.

Think about signal processing circuits. These circuits often rely on precise current control to amplify or filter signals. Understanding how current flows through transistors and other active components is essential, and KCL provides the framework for analyzing these current paths. The ability to understand those current paths is vital when diagnosing problems or optimising for performance.

In high-frequency circuit design, parasitic capacitances and inductances become more significant. Analyzing how current is affected by these parasitic elements is critical for ensuring signal integrity. KCL helps you understand how current flows through these parasitic paths and their impact on circuit performance.

In summary, while both KCL and KVL are vital, KCL often offers a more intuitive and convenient starting point for understanding circuit behavior, especially when focusing on current distribution, network topology, and applying nodal analysis. By grasping the abstract advantages of KCL, you can gain a deeper insight into the inner workings of electrical circuits and solve complex problems more effectively.
